Empagi y’okusitula okulwanyisa obujagalalo

24V Voltage entono pure amasannyalaze okusitula empagi KT-DX08

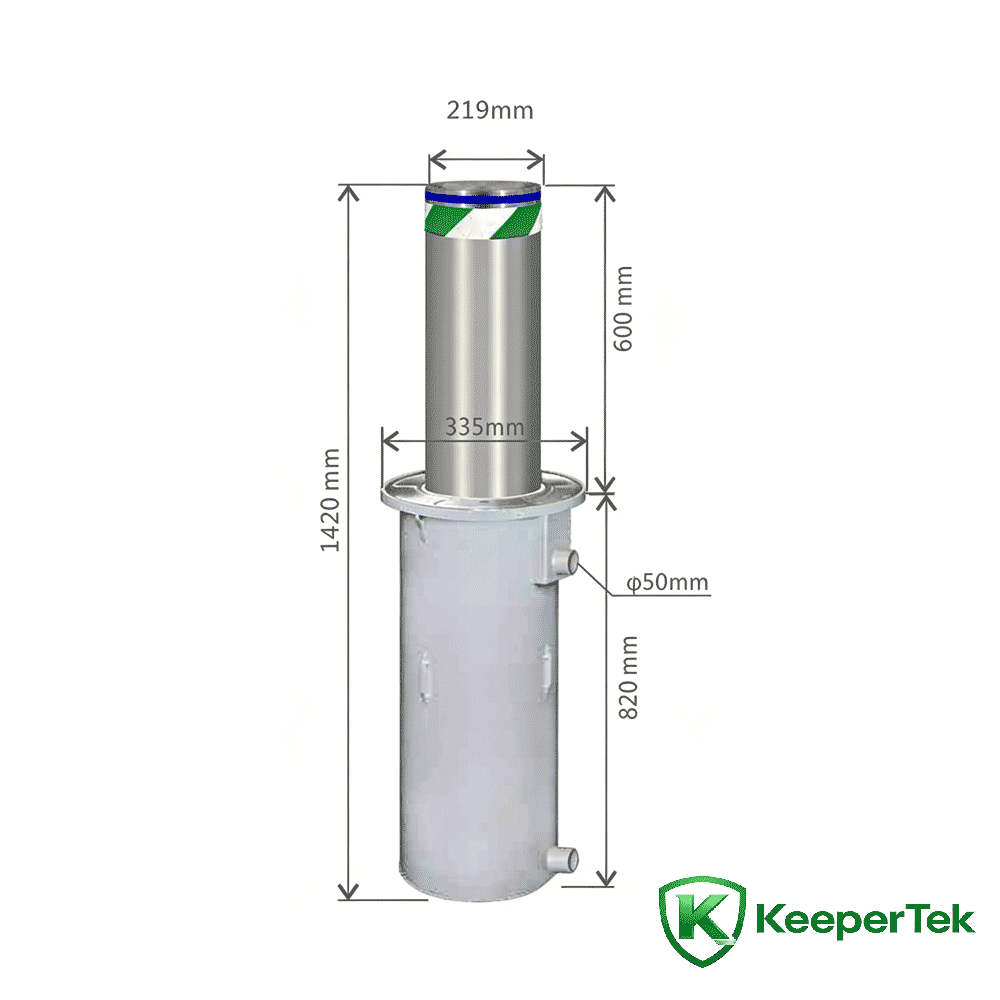

Ebipimo by’ebyekikugu

Obuwanvu bwa silinda: 219mm

Obugulumivu bwa silinda: 600mm

Obugumu bwa silinda: mm 6

Ebintu ebikozesebwa mu silinda: 304 ekyuma ekitali kizimbulukuse

Sipiidi y’okusitula: 6S～13S

Embedded bucket specifications: obuwanvu 395mm x obuziba 820mm

Ekigero ekiziyiza amazzi: IP68

Ebbugumu ly’okukola: -35°C～75℃

Ebikwata ku flange: 395mm × 10mm

Voltage y’okugabira: 24V

Amaanyi: 200W

Obubonero obw’okulabula: firimu eraga ekitangaala eky’amaanyi ennyo, amataala ga LED

Omulimu gw’amangu: Erimu amasannyalaze ag’amangu aga EPS n’okukka ku bbaatuuni emu

Enkola y’okufuga: Ekibokisi ekifuga kisobola okukozesebwa okufuga omuntu ku muntu/okufuga siteegi eya waya/okufuga okuva ewala okutaliiko waya

Emirimu egyongezeddwayo: okuyungibwa kw’enkola y’okutegeera nnamba puleeti/alamu y’omuliro/okufuga okuyingira

Ebintu eby'enjawulo

DC 24V amasannyalaze amayonjo, vvulovumenti etaliiko bulabe;

Waya ennyangu, layini emu yokka ey’okufuga yeetaagibwa ku bbokisi efugira n’ekibinja ky’empagi ezisitula, ekikekkereza ssente za waya；

Asobola okuyungibwa ku masannyalaze ga 24VUPS okufuga okusitula kwayo；

Waterproof grade IP68, ekyasobola okukozesebwa mu ngeri eya bulijjo ne bwe kiba nga kinnyikiddwa mu mazzi:

Enzimba ennywevu era ewangaala, obusobozi bw’okutikka emigugu eminene；

Nga tukozesa 5CM wide reflective film, reflectivity esobola okutuuka ku bitundu ebisukka mu 90%;

Optional high-brightness LED okulabula ettaala bbaala effectively okulongoosa ekiro okulabula effect.

Flange ya panel yeettanira dizayini y’omusono oguziyiza okuseerera, ate obuwanvu bwa flange bwa kwesalirawo 10mm/6mm;

Obugumu bwa flange waggulu ku mpagi buli mm 10/6mm;

Okulongoosa okutali kwa mutindo kukkirizibwa. Okutwalira awamu dayamita, obuwanvu, obuwanvu, endabika, sipiidi n’ebirala eby’empagi esitula bisobola okulongoosebwa.

Enkola z’okusengeka

Obugulumivu: obuwanvu 400mm, obuwanvu 800mm, obuwanvu 1000mm, obuwanvu 1200mm, obuwanvu 1500mm

Obugumu: 8mm obuwanvu, 10mm obuwanvu, 12mm obuwanvu, 16mm obuwanvu, 20mm obuwanvu

Obuwanvu: 168mm obuwanvu, 273mm obuwanvu, 325mm obuwanvu, ebirala
