Ekyuma ekitegeera ffeesi

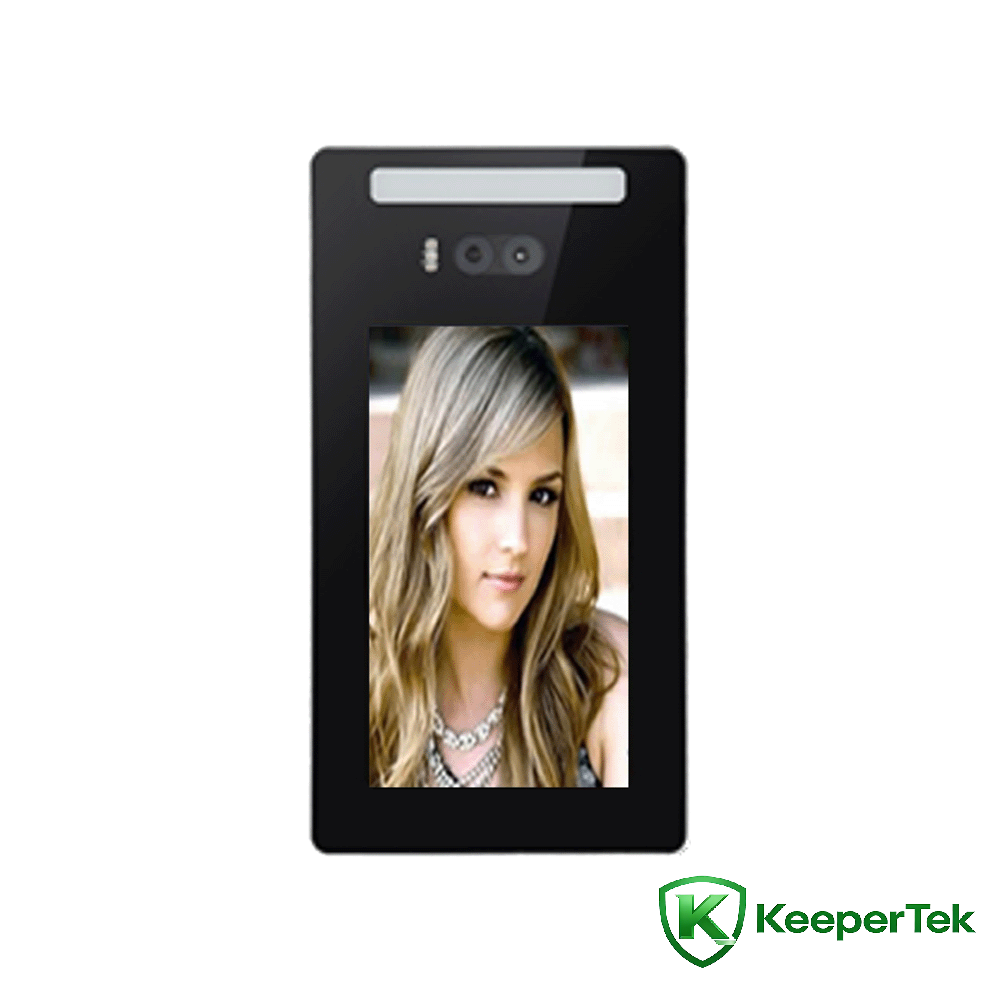

7yinsi abantu Ekyuma ekitegeera ffeesi byonna mu kimu KT-FR006

Processor: ARM Cortex-A7 erimu emisingi ebiri

Enkola y’emirimu: Enkola y’emirimu eya Linux

Okutereka: RAM 1GB + eMMC 8GB

Kkamera: Binocular, obukadde 2.1 eza pixels ezikola, 1920*1080

Ekyuma ekikuba ebifaananyi: 1/2.8 "Progressive Scan CMOS

Lenzi: 6mm

Module y’okukuba kaadi (ey’okwesalirawo): 13.56MHz, ewagira Mifare S50, kaadi za S70, kaadi za ultralinght, kaadi za NTAG, DESFire D21, D41, D81, kaadi za CPU ezitali za kukwatagana

Module ya Wifi (ey’okwesalirawo): bbandi ya frequency ya 2.4GHz, IEEE802 b/g/n protocol； Bbandi ya frequency ya 5GHz, IEEE802 a/n/ac protocol

Omuzindaalo: standard, ebirimu eby’okuzannya eddoboozi bisobola okulongoosebwa

Obugulumivu bw'okutegeera: 1.2 ~ 2.2 mita, angle adjustable

Okutegeera ebanga: 0.5 ~ 1.5 mita, ekyukakyuka okusinziira ku lenzi

Obudde bw’okutegeera: obutasukka sikonda 0.3

Obusobozi bw’okukwata: Ebikwata ku bifaananyi 80,000

Obusobozi bwa ffeesi: 30,000

Obutangaavu bwa screen: ≥400 cd/m2

Okukyusa ekifulumizibwa: 1 okukyusa ekifulumizibwa, emikutu emirala egya GPIO gisobola okulongoosebwa

Enkolagana y’omukutu: 1 RJ45 10M/100M adaptive Ethernet port, omukutu gw’omukutu gwa Gigabit ogukyusibwakyusibwa

Enkolagana ya Wiegand: 1 Okuyingiza enkolagana ya Wiegand, 1 Okufulumya enkolagana ya Wiegand

USB interface: 1 Enkolagana ya USB nga ekyuma

Enkola y’empuliziganya: 1 RS485 interface

Kkamera: Kkamera y’amaaso abiri, ekitangaala ekirabika ate nga kiri kumpi ne infrared, ewagira okuzuula omubiri omulamu

Pixels ezikola obulungi: Pixels ezikola obukadde 2.1, 1920*1080

Ekitangaala ekitono: langi 0.01Lux @F1.2 (ICR); omuddugavu n’omuzungu 0.001Lux @F1.2 (ICR)

Omugerageranyo gwa siginiini n’amaloboozi: ≥50db (AGC OFF)

Wide dynamic range: 120db, ISP algorithm okubikkula ekitundu ku ffeesi

Enkodi ya vidiyo: H.265 Enkodi ya Profile enkulu/H.264 Enkodi ya BP/MP/HP/Encoding ya MJPEG

Ensengeka y'olupapula lw'omukutu: ewagirwa

Okulongoosa okuva ewala kw'ekyuma: kuwagirwa

Enkola y’okuteeka mu nkola: ewagira enkozesa y’omukutu gw’olukale ne LAN

Ebbugumu ly’okukola: -30°C - +60℃

Obunnyogovu obukola: 0 ~ 90% obunnyogovu obw'enjawulo, tewali condensation

Omunnyo gw’okufuuyira: Rp6 oba okusingawo

Antistatic: okukwatagana ±6KV, empewo ±8KV

Amasannyalaze: DC12V/2A

Omutendera gw’okulwanyisa obujagalalo: IK06

Omutendera gw’obukuumi: IP66

Amaanyi g'ebyuma: 20W(MAX)

Enkula y’ebyuma: 240 (obugulumivu) * 128 (obugazi) * 28 (obugumu) mm

Ebintu eby'enjawulo

Wagira binocular okuzuula omubiri omulamu

Awagira okulondoola ffeesi n’okulaga abantu abatambula mu mbeera z’ekitangaala eky’amaanyi eky’emabega

Enkola ey’enjawulo ey’okutegeera ffeesi, etegeera bulungi ffeesi, obudde bw’okutegeera ffeesi buba wansi wa 0.3s

Nga okozesa enkola y’emirimu eya LINUX, enkola eno ebeera nnywevu

H.265 encoding format video stream eyungibwa butereevu ku NVR n’ebyuma ebirala ebitereka okuyita mu ONVIF protocol ne GB28181 protocol.

Awagira okutereka okw’omu kitundu mu kaadi ya TF, ng’okutereka ebifaananyi obutasalako okumala omwaka 1 n’obutambi okumala omwezi gumu oba okusingawo (okusinziira ku busobozi bwa kaadi ya TF ey’okwesalirawo)

Obudde bw'okudduka obutegeeza wakati w'okulemererwa MTBF>50000h

Awagira amaterekero g'okugeraageranya ffeesi 30,000+ n'ebiwandiiko by'okutegeera 80,000

Enkola z’enkolagana ennungi, eziwagira enkola za TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT wansi wa Windows/Linux n’emikutu emirala

Ebbugumu ly’okukola: -30°C-60℃

IP66 teyingiramu mazzi ate nga teyingiramu nfuufu

Enkolagana ya Hardware ennungi (I/O, WG26, WG34, RJ45, USB, RS485)

IPS ya yinsi 7 etunudde mu bujjuvu HD display, tewali kusiiga oba okulwawo mu bifaananyi

Automatic gain ne automatic white balance bisobozesa langi entuufu ey’ekifaananyi okuzzibwawo mu butonde

Sensulo ya black light level ezimbiddwamu eweereddwayo okulondoola vidiyo, okutegeera obulungi ennyo ekitangaala ekitono

Tekinologiya w’okukendeeza amaloboozi mu ngeri ya 3D n’okuyingira mu kifu kifuula ebifaananyi eby’okulondoola wansi w’ekitangaala ekitono okubeera okutegeerekeka obulungi era okubeera mu bujjuvu

Okuwagira okuziyiza ekitundu ku kitundu kya vidiyo

Okuwagira enkodi ya ROI

White balance ya otomatiki, white balance ya manual eriwo

Okuwagira okukendeeza amaloboozi mu ngeri ya 2D n’okukendeeza amaloboozi mu ngeri ya 3D

Ewagira okumasamasa kwa vidiyo, okwawukana, langi, okujjula, n’okutereeza gamma

Obuwagizi okuteekawo obudde obusinga obunene obw'okulaga otomatiki

Awagira ffeesi intelligent exposure ne face intelligent enhancement settings
