Ekyuma ekitegeera ffeesi

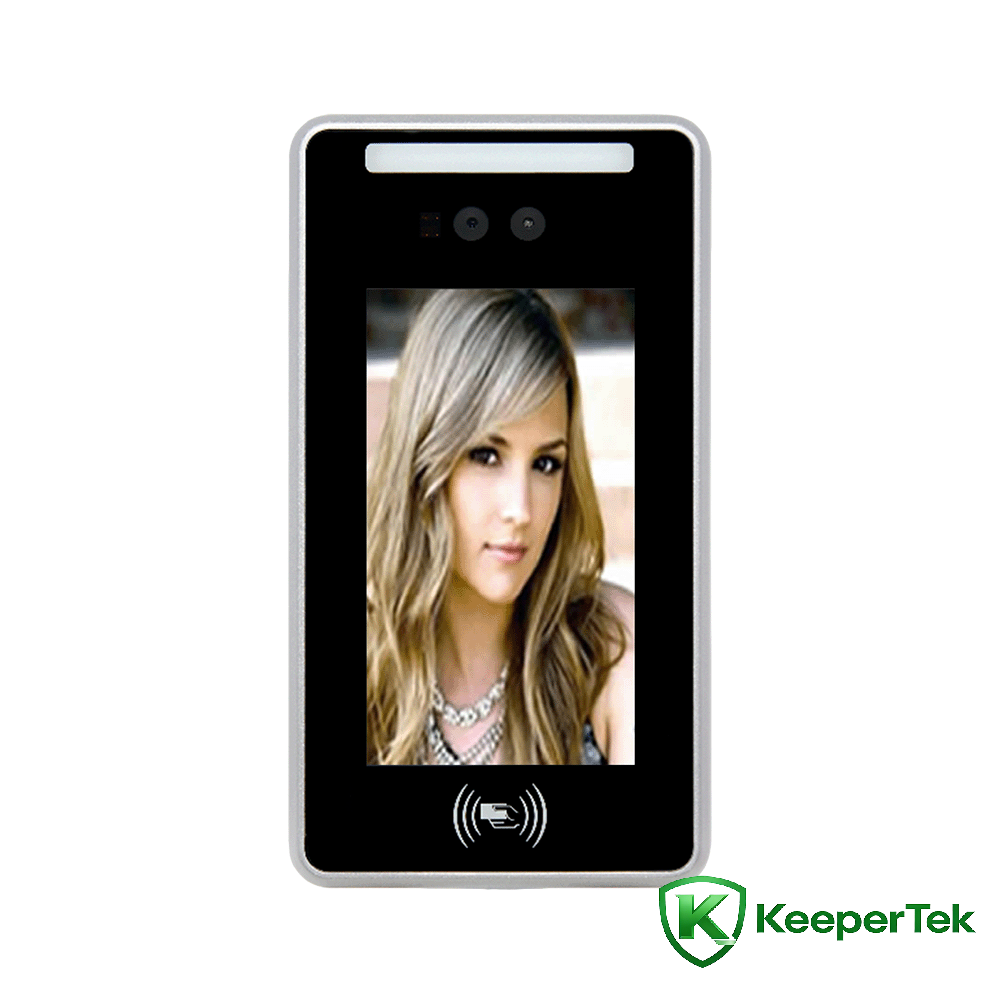

7yinsi abantu Kaadi y’okutegeera ffeesi ekuba ekyuma ekikuba byonna mu kimu KT- FR007

Ebipimo by’ebyekikugu

Processor: ARM Cortex-A7 ey’emisingi ebiri, @1.0GHz

Enkola y’emirimu: Enkola y’emirimu eya Linux

Okutereka: 8GB EMMC

Kkamera: Binocular, obukadde 2.1 eza pixels ezikola, 1920*1080

Ekyuma ekikuba ebifaananyi: 1/2.8 "Progressive Scan CMOS

Lenzi: 6mm

Module y’okukuba kaadi: 13.56MHz, ewagira Mifare S50, kaadi za S70, kaadi za ultralinght, kaadi za NTAG, DESFire D21, D41, D81, kaadi za CPU ezitali za kukwatagana

Module ya WIFI: IEEE 802.11b/g/n standard, ewagira 2.4GHz frequency band, sipiidi ya 1Mbps-150Mbps

Module ya Bluetooth: 8DPSK, π/4DQPSK, GFSK, sipiidi ya 1Mbps-2, 3Mbps

Omuzindaalo: standard, ebirimu eby’okuzannya eddoboozi bisobola okulongoosebwa

Obugulumivu bw'okutegeera: 1.2 ~ 2.2 mita, angle adjustable

Okutegeera ebanga: 0.5 ~ 1.5 mita, ekyukakyuka okusinziira ku lenzi

Enkoona ya ffeesi: diguli 30 ku kkono ne ku ddyo, diguli 30 waggulu ne wansi

Obudde bw’okutegeera: obutasukka sikonda 0.5

Obusobozi bw’okutereka: Ebiwandiiko by’ebifaananyi 60,000

Obusobozi bwa ffeesi: 20,000

Ebika bya kaadi ebiyinza okusiba: 13.56MHz, ID card serial number, Mifare, NFC (optional built-in ID card reader)

Okukyusa ekifulumizibwa: 1 okukyusa ekifulumizibwa, emikutu emirala egya GPIO gisobola okulongoosebwa

USB interface: 1 Enkolagana ya USB nga ekyuma

Enkolagana y’omukutu: 1 RJ45 10M/100M adaptive Ethernet port, omukutu gw’omukutu gwa Gigabit ogukyusibwakyusibwa

Enkolagana ya Wiegand: 1 Okufuluma kw'enkolagana ya Wiegand, 1 Okuyingiza enkolagana ya Wiegand

Enkola y’empuliziganya: 1 RS485 interface

Kkamera: Kkamera y’amaaso abiri, ekitangaala ekirabika ate nga kiri kumpi ne infrared, ewagira okuzuula omubiri omulamu

Pixels ezikola obulungi: Pixels ezikola obukadde 2.1, 1920*1080

Ekitangaala ekitono: langi 0.01Lux @F1.2 (ICR); omuddugavu n’omuzungu 0.001Lux @F1.2 (ICR)

Omugerageranyo gwa siginiini n’amaloboozi: ≥50db (AGC OFF)

Ebbugumu ly’okukola: -30°C - +60℃

Obunnyogovu obukola: 0 ~ 90% obunnyogovu obw'enjawulo, tewali condensation

Amaanyi g’ebyuma: 10W (MAX)

Omunnyo gw’okufuuyira: Rp6 oba okusingawo

Antistatic: okukwatagana ±6KV, empewo ±8KV

Amasannyalaze: DC12V/2A

Omutendera gw’okulwanyisa obujagalalo: IK06

Omutendera gw’obukuumi: IP66

Ebikwata ku screen: screen ya yinsi 7 eya IPS eya high-definition

Enkula y’ebyuma: 252 (obuwanvu) * 136 (obugazi) * 26 (obugumu) mm

Ebintu eby'enjawulo

Wagira binocular okuzuula omubiri omulamu

Awagira okulondoola ffeesi n’okulaga abantu abatambula mu mbeera z’ekitangaala eky’amaanyi eky’emabega

Enkola ey’enjawulo ey’okutegeera ffeesi, etegeera bulungi ffeesi, obudde bw’okutegeera ffeesi buba wansi wa 0.5s

CPU y’awaka ezimbiddwamu

Nga okozesa enkola y’emirimu eya LINUX, enkola eno ebeera nnywevu

Obudde bw'okudduka obutegeeza wakati w'okulemererwa MTBF>50000h

Awagira okutuuka ku 20,000+ amaterekero g'okugeraageranya ffeesi n'ebiwandiiko 60,000 eby'okutegeera

Enkola z’enkolagana ennungi, eziwagira enkola za TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT wansi wa Windows/Linux n’emikutu emirala

Ebbugumu ly’okukola: -30°C-60℃

IP66 teyingiramu mazzi ate nga teyingiramu nfuufu

Host ezimbiddwamu IC card swiping module

Enkolagana ya Hardware ennungi (I/O, WG26, WG34, RJ45, USB, RS485)

IPS ya yinsi 7 etunudde mu bujjuvu HD display, tewali kusiiga oba okulwawo mu bifaananyi
